ISRA VISION (Germany) forms the core of the Machine Vision Solutions division of the Atlas Copco Group

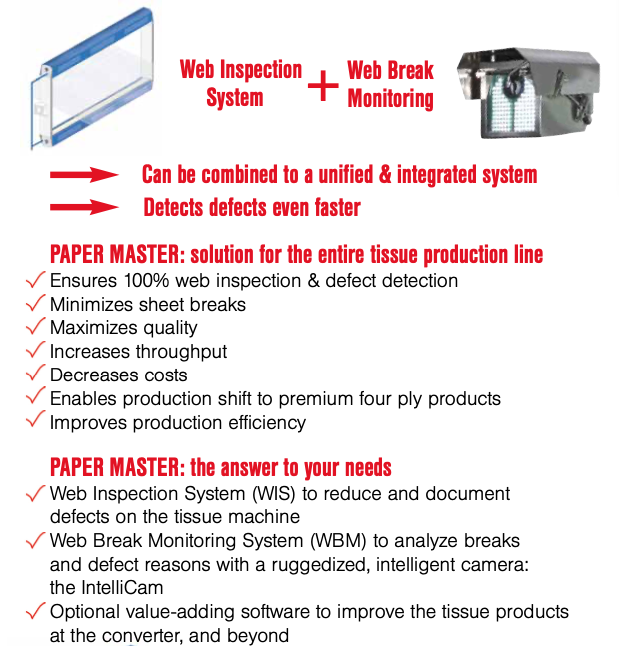

Paper Master

ISRA VISION´s complete set of camera-based web monitoring and inspection systems covers the entire process chain from pulp to reel. In addition, our systems and software solutions help to optimize the entire production chain – from headbox to the ultimate delivery of the manufactured product to the customers.

Paper, pulp, board and tissue inspection

This complete inspection setup enables manufacturers to significantly reduce costs caused by avoidable web breaks in the slitting and winding process, while accurate defect reports for each cut roll offer 100% production documentation.

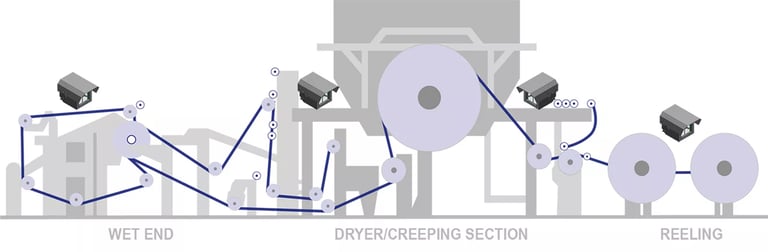

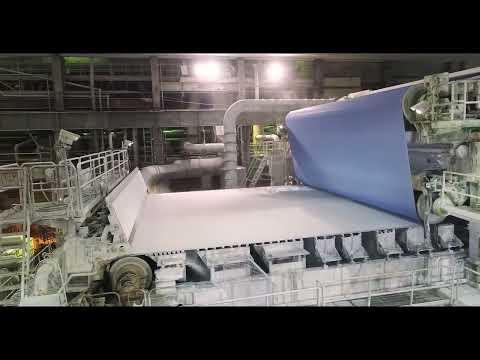

Web Break Inspection with ISRA IntelliCam on the wet end of a paper machine

Surface Inspection Systems for the Paper, Pulp and Board Industry

PrintStar

Inspection for printed flexible packaging

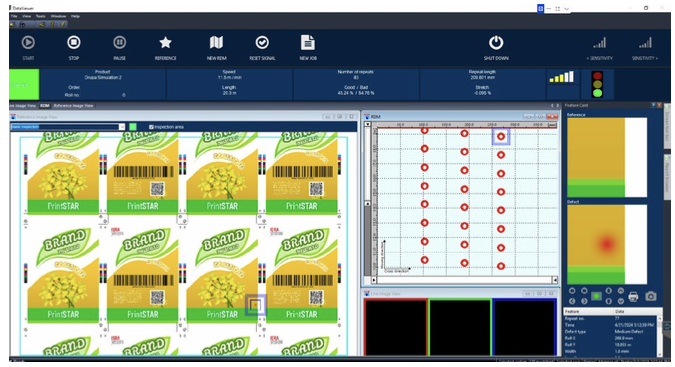

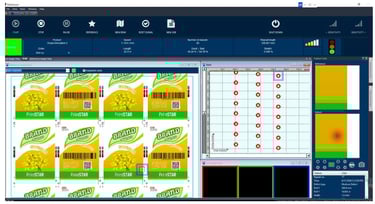

PrintSTAR is an inline inspection system that enables 100% continuous quality and process control in print production, including lamination and coating. Using high-resolution line scan cameras in combination with ultra-bright LED lighting, the system detects and classifies both single and repetitive defects in real time

APPLICATIONS

  • Flexible packaging, printed plastic film or paper for food & nonfood packaging

  • Personal care & hygienic film printing

  • Aluminium packaging for pharma, food & pet food

  • Liquid packaging

  • Security printing

CONNECTIVITY

  • ViewSTAR / ColorSTAR / EPROMI /OPC-UA

  • Inspection width: from 600 mm up to 2.500 mm; others on request

Classification:

The sophisticated defect classification different- iates between severe and neglectable defects and contributes to reach a higher rate of saleable material

Multiview:

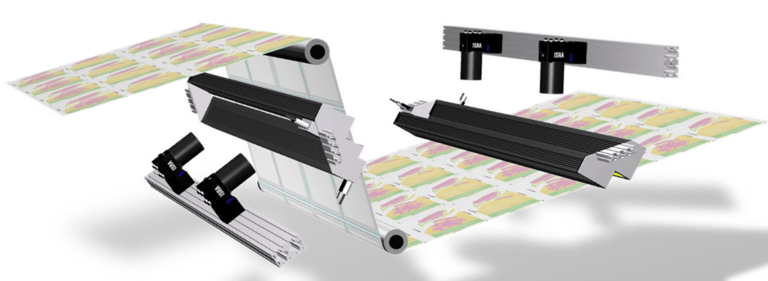

By using multiple camera banks and special exposure con- cepts, PrintSTAR EVO is also able to inspect hard-to-find defects such as toner defects (hazing), protective or decora- tive coatings, and cold seals

Boost your printing quality, production efficiency and throughput for printed films or paper with 100% inline inspection

Assured color quality during the entire production run

DecoStar

Metal printing on steel and aluminum sheets inspection

DecoSTAR and DecoSTAR EVO inline print inspection solutions ensure reliable quality control for metal printing on steel and aluminum sheets. These flexible and easy-to-install systems can be used for tinplate or aluminum as well as for high-gloss or matt designs on any type of machine. DecoSTAR EVO can be used flexibly in both offset and digital printing.

Thanks to state-of-the-art LED lighting, our systems reliably identify color deviations and detect register errors, splashes, hickeys, missing color or scratches. They also detect whether ink has been sprayed onto the sealing edges, which must remain free.

Detecting defects quickly is essential in order to produce as few rejects as possible.

DecoSTAR inline inspection system is designed to reliably detect printing defects on printed metal sheets and thus optimise production by preventing waste.
